Products Description

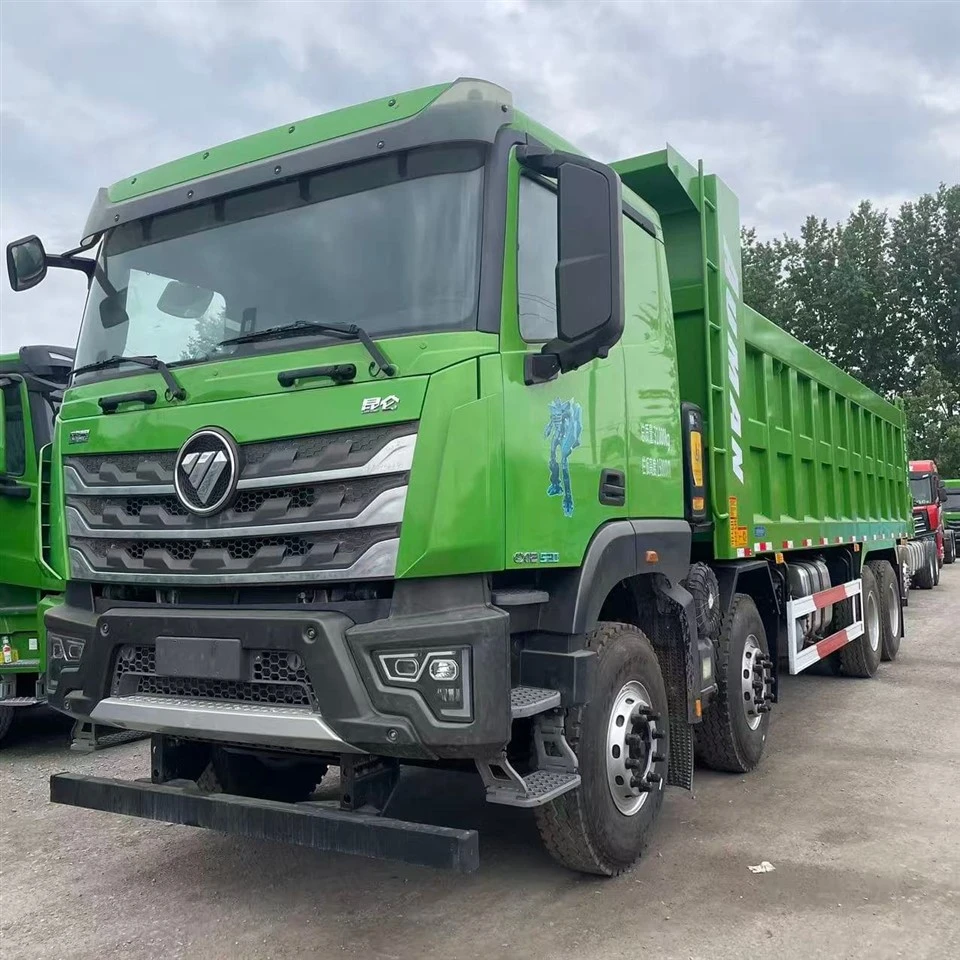

The earthmoving dump trucks supplied by this heavy-duty tipper truck supplier are built with reinforced chassis and high-tensile steel cargo boxes for mining and quarry operations. The Foton Auman GTL dump truck is available with Weichai or Foton Cummins engines and either a front-end or center-mounted hydraulic lifting system. The trucks are produced under ISO 9001 quality control and undergo pre-shipment inspection before delivery.

Basic Info.

Emission Standard

Euro 5

Drive Wheel

6×4

Engine Capacity

＞8L

Seats

≤5

Dumping Type

Front Lifting Style

Color

Customized

Total Mass

25000kg

Fence Panel

1200mm

Application

Earthwork Project

Transport Package

Nude

Trademark

Ouman GTL

Origin

China

product detail

The cab features an all-steel frame and reinforced A-pillars designed to meet the ECE R29 crash safety standard. Its sealed construction helps keep dust and heat out, making it suitable for demanding construction-site conditions.

Buyers can choose between air-suspension and mechanical-suspension seats, with sleeper berths and high-power air conditioning also available as optional equipment.

The cargo box is made not of ordinary carbon steel, but of wear-resistant steel plates, and is equipped with full-length side ribs and reinforced base plates.

U-shaped or rectangular boxes are available as options. Before production, the purchaser may specify the thickness of the base and side plates, rear-door sealing requirements, and corner-reinforcement solutions.

Applications

Mining ore haulage

Short cycle movement from pit to crusher.

Quarry overburden removal

Stripped topsoil and waste rock across benches.

Infrastructure earthworks

Bulk fill for highway, railway, and airport base.

Hydropower and dam projects

Aggregate, riprap, and core fill hauling.

Port and stockpile handling

Coal, ore, and bulk cargo short movement.

Metallurgical plant feeding

Raw material charging and slag removal.

Custom Parameter

Box profile

U-shape or square body for different material.

Floor thickness

10–16 mm wear steel for abrasive cargo.

Side wall reinforcement

Full-length ribs and boxed top rails.

Tailgate type

Hinged, hydraulic locking, or sealed.

Hydraulic system

Front or central lift, Hyva or domestic cylinders.

Tire specification

12.00R20 or 13R22.5 for site or road.

quality control process

Incoming steel - Mill certs & hardness check.
Cutting & forming - CNC plasma, press brake tolerance.
Welding - Full-penetration, visual & UT.
Pre-assembly - Frame & box geometry check.
Hydraulic test - Rated load cycle, zero leak.
Paint & finish - Shot blast, primer, DFT check.
Final inspection - Torque, function, sign-off.
Pre-shipment - Third-party report & photos.

company introduction

factory

Our 3,000㎡ modern plant produces over 400 trailers annually, with monthly deliveries of 30+ units, supporting flexible mixed-model production.

Scale & Capacity

Equipped with automated laser cutters and robotic welding lines, ISO9001 & CE certified, with 100% inspection at all critical stages for guaranteed reliability.

Technology & Quality

Direct factory sourcing shortens lead times, eliminates intermediary costs, boosts your inventory turnover, and reduces holding expenses.

Delivery & Cost

Our Partners

customer case

Customer vehicle inspection

Experience the truck firsthand

truck partner

Real shots of overseas customers receiving goods and screenshots of positive reviews. After field tests by customers, the quality of Howo dump trucks exceeds expectations, and our supporting services gain high recognition. All vehicles pass rigorous inspections and are suitable for construction sites, mines and earthwork projects. Spare parts supply and after-sales technical support are available upon vehicle purchase.

Factory | Workshop

Truck Showroom: Brand-new truck cabs ready for delivery

Factory Fleet: Full range of construction trucks in stock

Truck Yard: Large-scale dump truck inventory base

certificate

transportation

Every dump truck is thoroughly inspected before dispatch-powertrain performance checks, full-body surface scrutiny, and accessory verification included-to leave no detail unchecked. After professional lashing and reinforcement, they are securely loaded onto heavy flatbed trailers and sent directly to the port for smooth shipping coordination. With end-to-end visual logistics tracking, we ensure full visibility and quality control from our factory gate to your overseas project site, delivering a truly worry-free turnkey handover every time.

FAQ

01.What engine options are available for the Foton Auman GTL dump truck?

The unit is offered with Weichai or Foton Cummins engines, matched to 6x4 or 8x4 drive configurations for heavy-duty earthmoving work.

02. Can the cargo box be customized before production?

Yes, buyers can specify U-shape or square body, floor and side wall thickness, tailgate type, and hydraulic brand based on actual site material.

03. What is the standard delivery time for export orders??

For standard-config Earthmoving Dump Truck orders, delivery is usually 25–35 days after deposit and spec confirmation; customized units may take 40–50 days.

04.Do you provide pre-shipment inspection and export documents?

Yes, each order includes a third-party inspection report, loading photos, and full export documentation before shipment.

05. What after-sales support does your company offer as a heavy duty tipper truck supplier?

We supply spare parts lists, extra wear plates, and remote technical support, with local dealer assistance in key markets for quick service.
