Products Description
"Beyond chassis and hydraulic considerations, the true competitiveness of this heavy duty road wrecker lies in its material standards and production flexibility. The main boom and subframes are fabricated from high-strength alloy steel, integrated with precision laser cutting and automated welding techniques to guarantee structural reliability under sustained heavy loads. After final assembly, we apply a comprehensive phosphating and anti-corrosion pre-treatment finish, offering exceptional resistance against metal erosion in coastal areas or high-humidity working environments."
As a heavy-duty truck supplier with flexible production capacity, we support in-depth customization of lifting parameters, lifting forms and tool cabinets to precisely comply with commercial vehicle regulatory standards in different countries and regions. Such customized services starting from the production end can save purchasers from cumbersome post-purchase modification procedures and significantly improve the overall operational efficiency of fleets.
Basic Info.
| General | Model | CLW5310TQZZ4 |
| Overall Dimension | 11000×2500×3600 (mm) | |
| GVW | 31000(kg) | |
| Kerb Weight | 30000(kg) | |
| Max Speed | 90km/h | |
| Engine | Fuel Type | Diesel Oil |
| Manufacturer | Sinotruk | |
| Engine Model | WD615.47 / 371hp | |
| Engine Type | Four-cylinder, in-line, water cooling, supercharging, DI, diesel engine | |
| Displacement | 9.726L | |
| Rated Power | 273KW | |
| Emission Standard | Euro II | |
| Chassis | Chassis Model/ Brand | HOWO |
| Drive Type | 8*4 Left Hand Drive | |
| Front Axle | HF9 | |
| Rear Axle | HC16 | |
| Wheelbase | 1800+4600+1350mm | |
| Transmission | Mechanical manual transmission 8 Forward Speed, 1 Reverse |
|
| Tire Size/ Number | 12.00R20+1Spare Tire |
product details

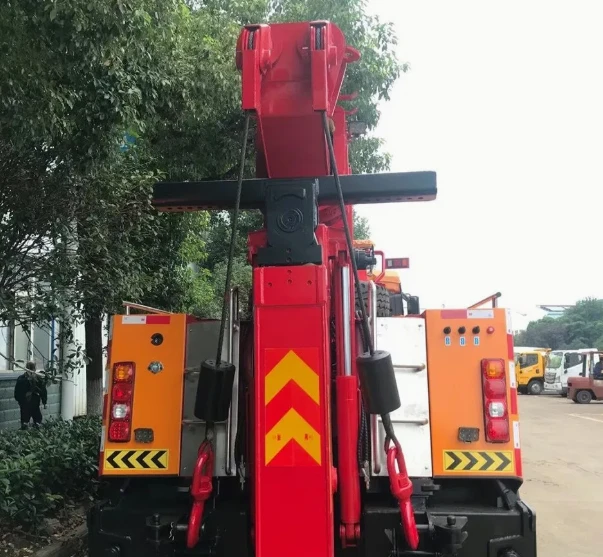

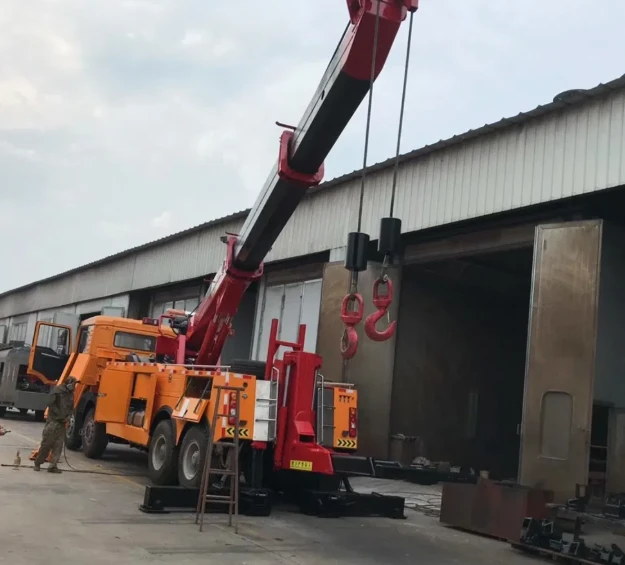

Focusing on the telescopic boom and dual hook system, this heavy-duty rescue vehicle demonstrates outstanding overall operational capabilities. The synchronized telescopic boom structure provides smooth lifting and extension feedback, and in combination with the front dual hook design, it effectively disperses the lifting load points, significantly enhancing the stability and safety redundancy during heavy-load towing processes.

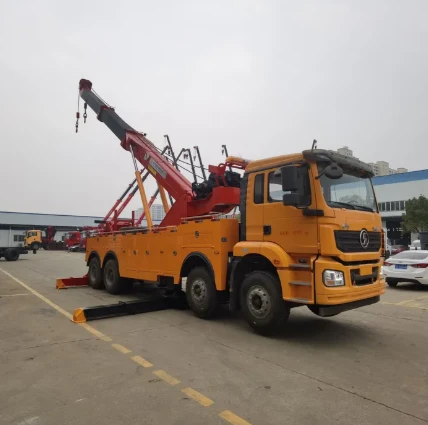

The multi-axle chassis and operational stability thoroughly satisfy load-bearing capacity requirements under extreme working conditions. The side-extended hydraulic outrigger system effectively counterbalances the overturning moment during heavy lifting, ensuring firm ground adhesion for the entire vehicle.
Company Profile
Based on Liangshan's professional vehicle manufacturing and supply chain advantages, Liangshan Great Shark International Trade Co., Ltd. specializes in truck sales, international trade and logistics services. It supplies new & commercial vehicles, auto parts and accessories, and provides professional used vehicle trading services.
customer case
Factory | Workshop
Truck Showroom: Brand-new truck cabs ready for delivery
Factory Fleet: Full range of construction trucks in stock
Truck Yard: Large-scale dump truck inventory base
certificate
Production Facilities: Modern truck manufacturing workshop
Certifications: Complete ISO and quality certificates
Patents: Multiple authorized technology patents
transportation
Our brand-new dump trucks are professionally secured on heavy-duty flatbed trailers, fully prepared for port delivery and overseas shipment. Before dispatch, every vehicle passes a rigorous pre-shipment inspection covering engine performance, body condition and accessory completeness, guaranteeing that each truck arrives at your destination in perfect condition with reliable door-to-door logistics support.
FAQ
Q: How long is your delivery time?
A: Usually, production takes about 15–25 working days after we receive your deposit. Don't worry, we will regularly send you real-time photos of your truck being built, just like we do throughout the whole process.
Q: What payment methods do you accept?
A: We accept T/T, L/C at sight, and other terms can be discussed. Commonly, we work with 30% deposit and 70% balance before shipment. We have been in this business for years, so the transaction is absolutely safe and smooth for you.
Q: Do you provide a warranty for the trucks?
A: Yes, we offer a 12-month warranty or a certain mileage (whichever comes first). Our professional after-sales team will support you with online guidance, technical help, and fast supply of genuine spare parts.
Q: Can you help arrange the shipping to my country?
A: Of course! We have rich experience in exporting trucks worldwide. We can ship by Ro-Ro vessel, container, or bulk carrier, and we handle all the export documentation and customs clearance to make sure everything goes smoothly.
Q: Will you attend overseas construction machinery exhibitions together with me?
A: We regularly join global industry expos. We can share booth costs, supply display vehicles and send professional sales staff to assist you with on-site client negotiations.
Q: Can you help make custom marketing brochures and product catalogs for me?
A: Absolutely. Our design team can create tailored English catalogs, posters and social media promotional materials free of charge for our formal partners.
Q:Do you offer exclusive agency cooperation for my country?
A: Sure. We support regional exclusive distributor partnerships. We will protect your market territory and provide special preferential prices for long-term agents.
